PH Series- PH1100

1-10 Auto-detect NVMe PCIe/SATA SSD Duplicator

Feature

Speed transfer up to 24 GB per minute.

Systems & files copy mode supports Windows (FAT16/32/64, NTFS), Linux (ext2/ext3/ext4, LVM) and Mac (HFS, HFS+, HFSX.)

U-Native: NVMe/SATA/SAS Native Protocol

NS21: NVMe and SATA

Standalone Operation No Waiting Time Required for Duplication

Event Log Report

CRC Checksum

phs-600d
PH600
PH1100
phs-600d
PHS600SAS

Impeccable High Speed

U-Reach PH Series PCIe SSD duplicator is capable of copying at 24GB/min. on all HDDs simultaneously, without any speed degradation as number of targets increase. This duplicator is great for manufacturers.

No waiting time required for duplication

When each round of duplication is completed, the next round can start immediately without having to wait or restart the machine.

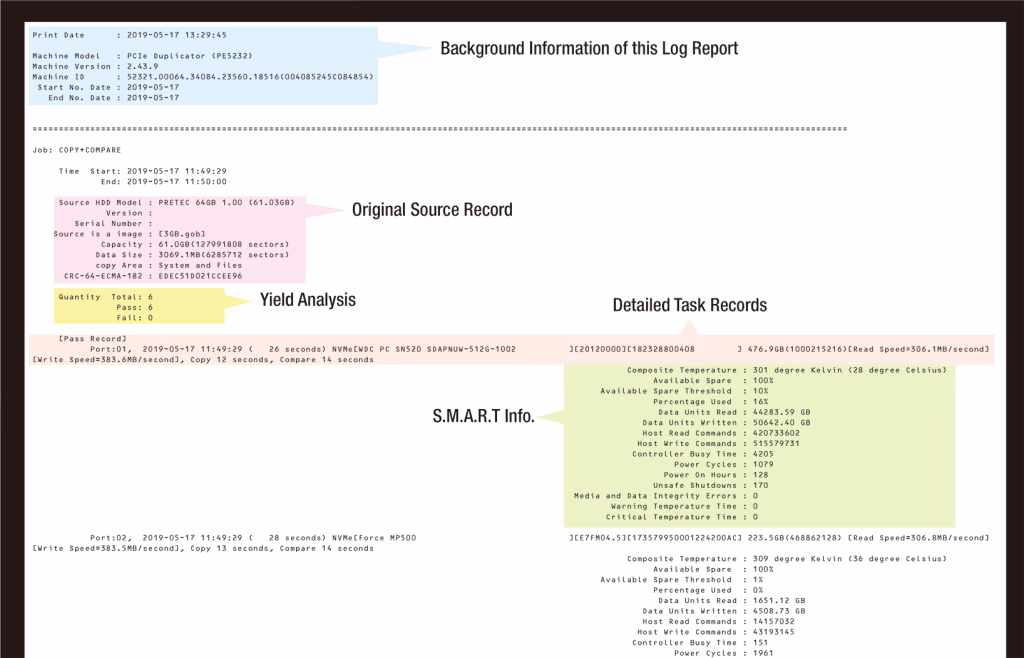

Event Log Report

U-Reach PH Series Auto-detect NVMe/SATA PCIe SSD Duplicator has an unique mechanism to prevent alteration of its Event Log Report. It records the operation results and other information of each devices completely. It is an important asset for production management and analysis.

Intelligent Duplication Modes

U-Reach PCIe SSD duplicator offers a diverse of duplication modes. The user may select the appropriate mode based on application demand.

Illustration of Copy Modes

The areas containing data are marked in blue. The areas being copied are marked in red. Duplication time depends on the speed supported by the hard drive’s controller chip.

Sanitization Methods

High Compatibility

  • Quick copy mode supports Windows (FAT16/32/64), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX) formats.
  • Whole media copy mode supports all system and proprietary formats.
  • Supports various brands.
  • Designed to support 18TB+ capacities.
  • Supports MBR and GPT partitioning.

Source Management System

The administrator can through a specific software store the image files on the computer for centralized management. When needed, this image files will be sent to the duplicator for duplication. This is designed specifically for production plant as this makes it easier to mange the source and reduce human error.

Dual data verification: Compare + CRC

In addition to the bit-to-bit comparison function, PP281 uses the CRC international calculation standard to confirm the correctness of the data, and whether the source data is correct. User only needs to confirm the CRC value at the end of the copy, and can also confirm whether the copied data is correct.

Auto Rejection of Slow Devices

PH Series M.2 PCIe SSD duplicator enable end-users to set the minimum writing speed threshold. This feature was developed to prevent and to eliminate problematic devices that halts the duplication and sanitizing process.
