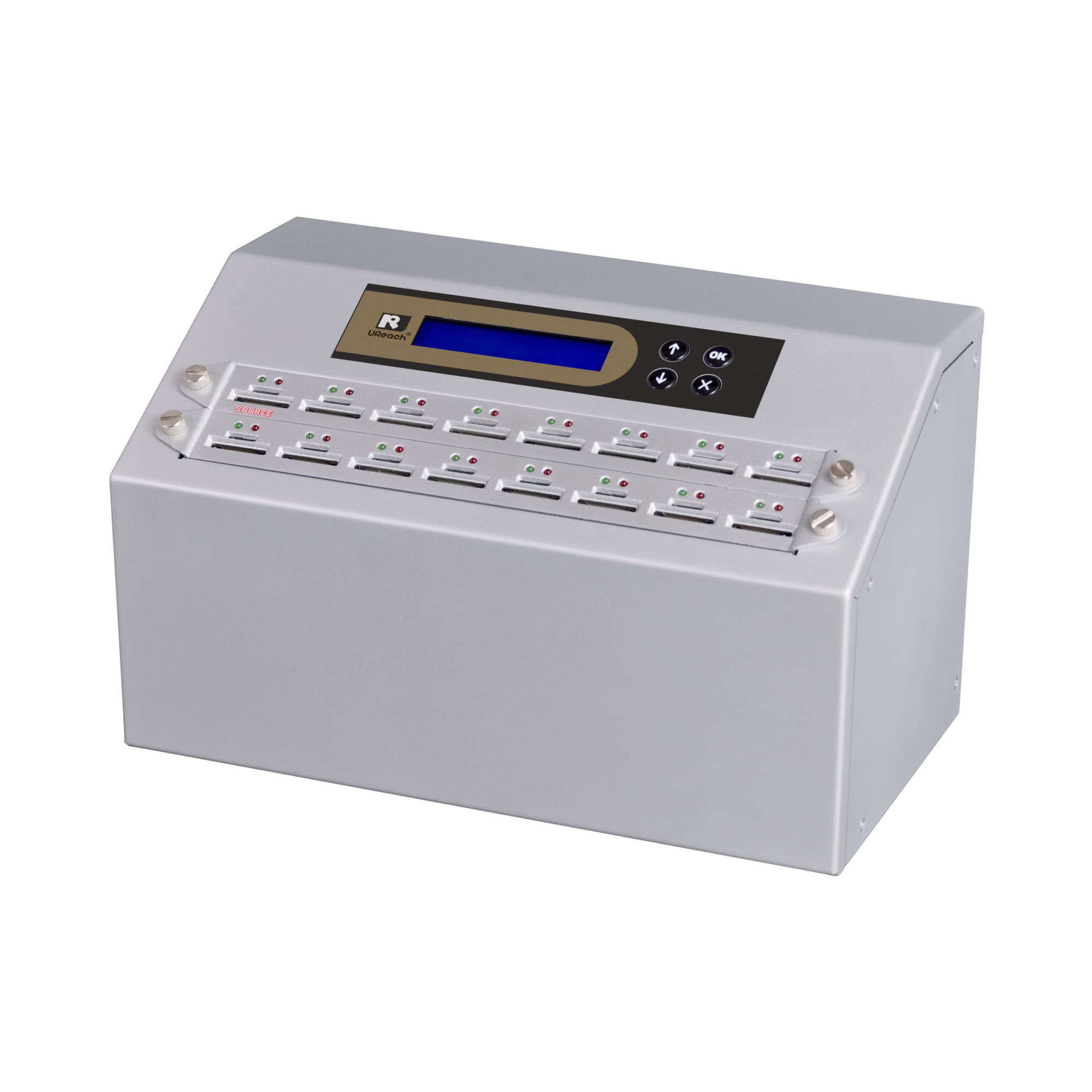

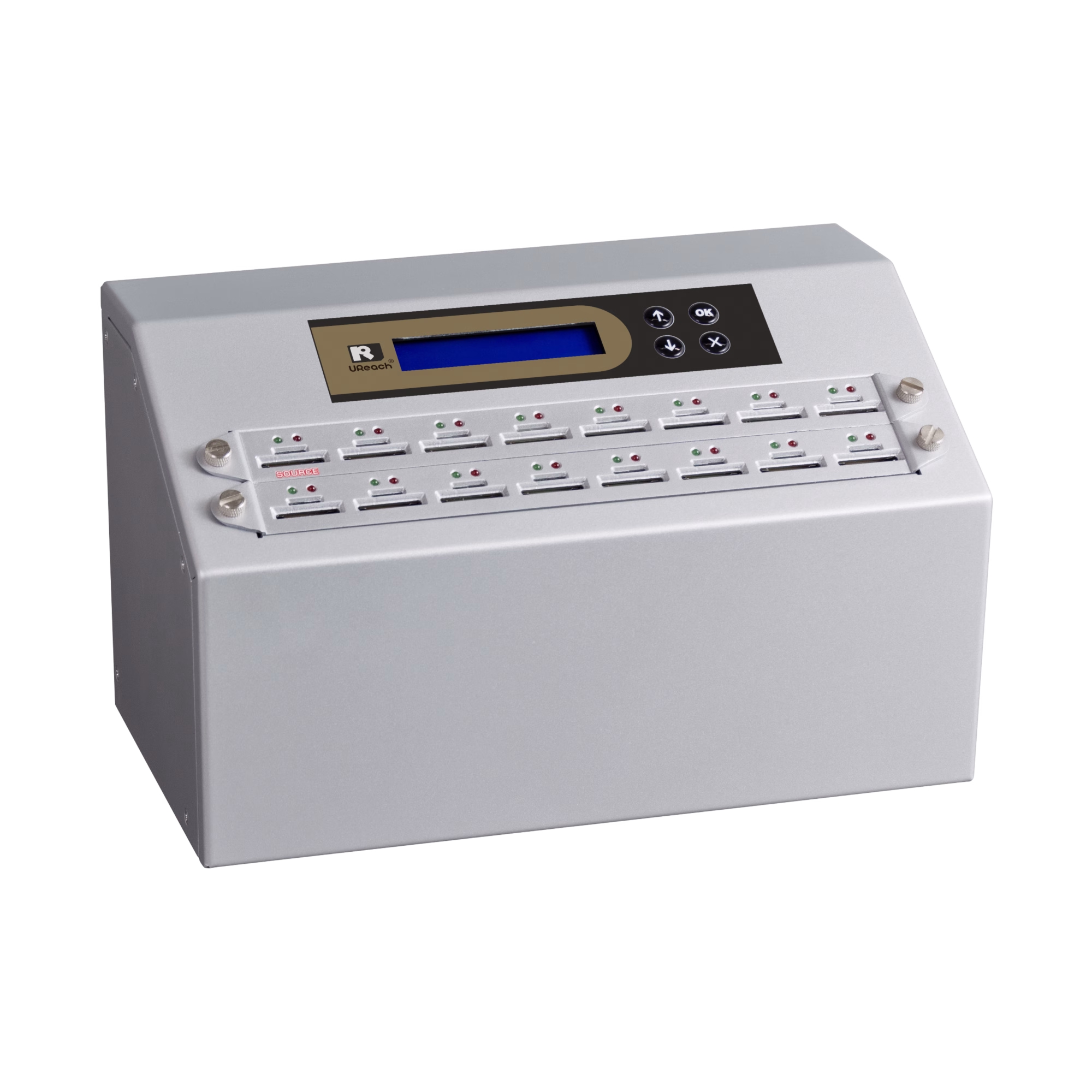

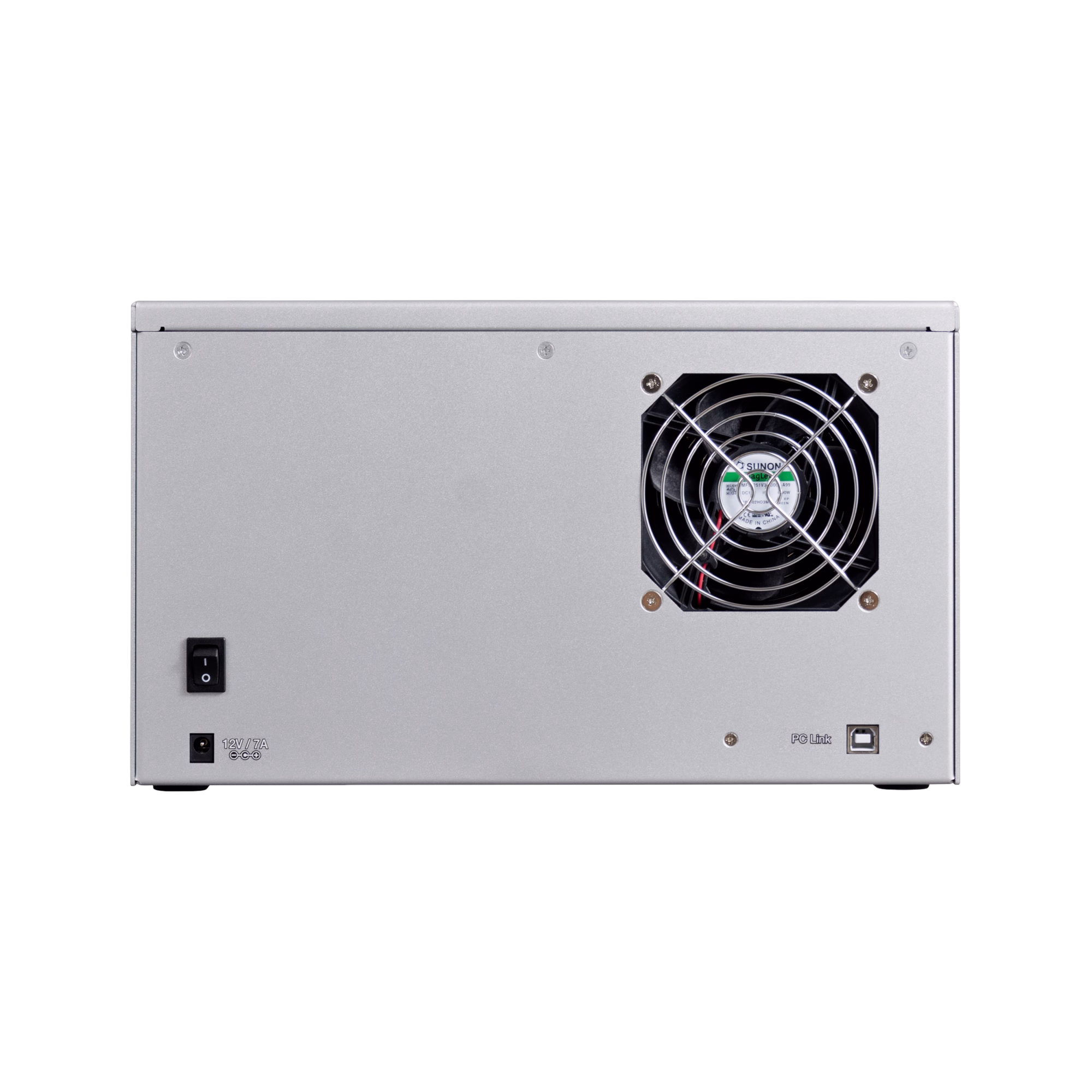

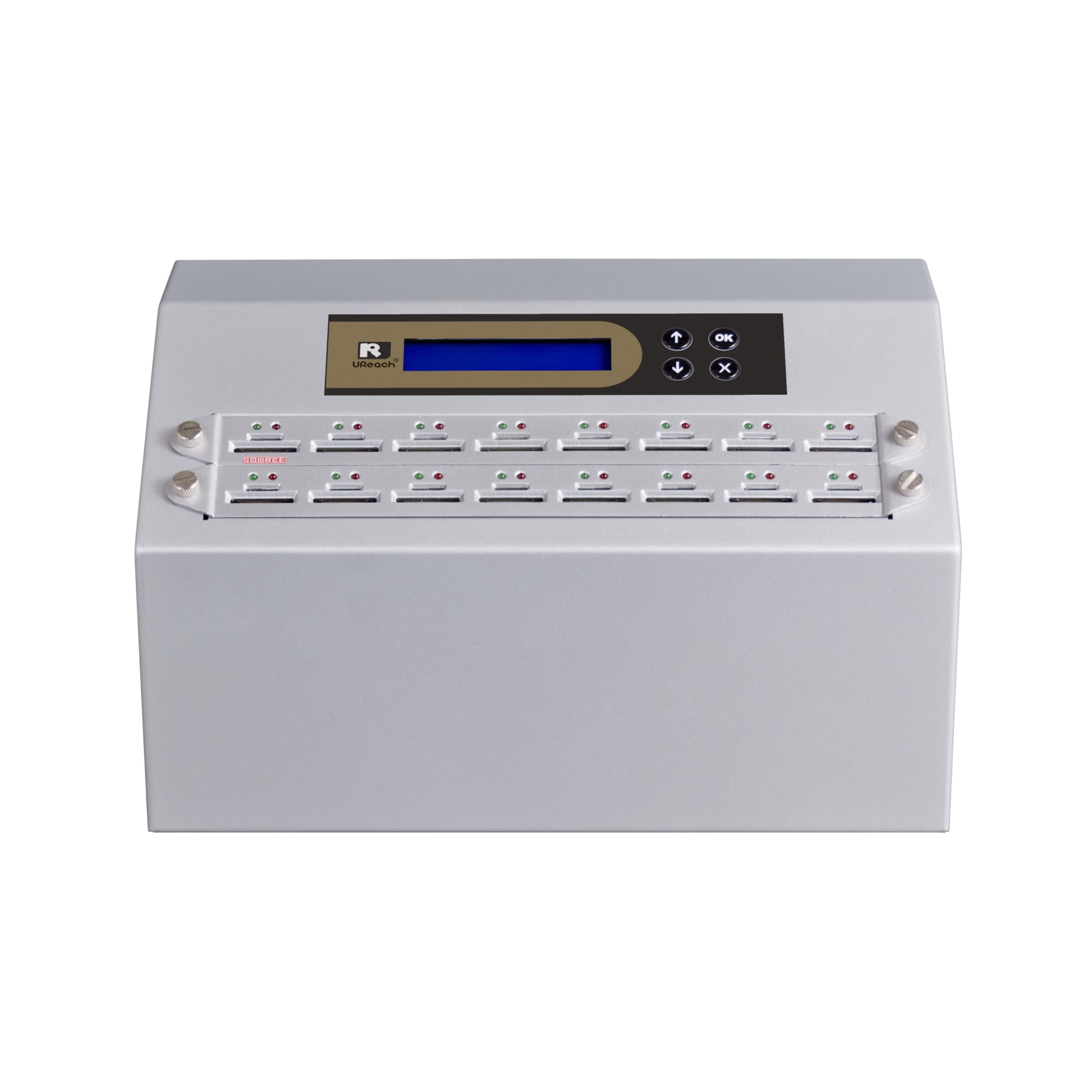

Intelligent SD3.0 Golden Series
1 to 15 SD / microSD Duplicator and Sanitizer (SD3916G3)
Feature
Standalone, no PC required to operate the SD/MicroSD duplicator.
Peak transfer speeds up to 9.3GB/min. per port without speed degradation over thousand of ports.
Supports all types of data format copying while doing bit by bit duplication.
Supports “quick copy” for Linux (ext2/ext3/ext4) and NTFS, FAT16/32.
The SD & MicroSD card can have a capacity up to largest size available on the market.
Supports Log Report for better production management.
Supports H2 H5 Media Check & Testing.
Supports "Get Device ID" to retrieve serial number, MMID, OID and more card info.
The most cutting edge in duplication technology, UReach Intelligent SD3.0 series combo SD microSD duplicator is professional, standalone and efficient. It can duplicate a full range of SD microSD cards from 1 to 15 targets. 125MB/s High Speed and flexibility are key factors in satisfying customer needs. Its effortless use means a PC or other software are not required; the combo SD microSD duplicator provides a reliable, worry-free copy environment for users, without the risk of virus corruption. This Intelligent SD3.0 series combo SD microSD card duplicator is integrated with a high-speed compare function to ensure data copies with 100% accuracy. It also boasts quick format capabilities. These features greatly help increase efficiency and production productivity.
The Intelligent SD3.0 series has added some more important functions – Event Log report, H2 H5 Media Check and CRC64, MD5, SHA256 Checksum.
The Intelligent SD3.0 series combo SD microSD card duplicator is an economical solution for data copy and distribution via SD microSD memory cards. It contains smart, reliable and beneficial functions that provide an outstanding performance and quality that will save you time and money.
Impeccable High Speed
UReach SD3.0 duplicator can copy up to 9.3GB/min (125MB/s) on all devices, simultaneously and without any speed degradation as number of targets increase.

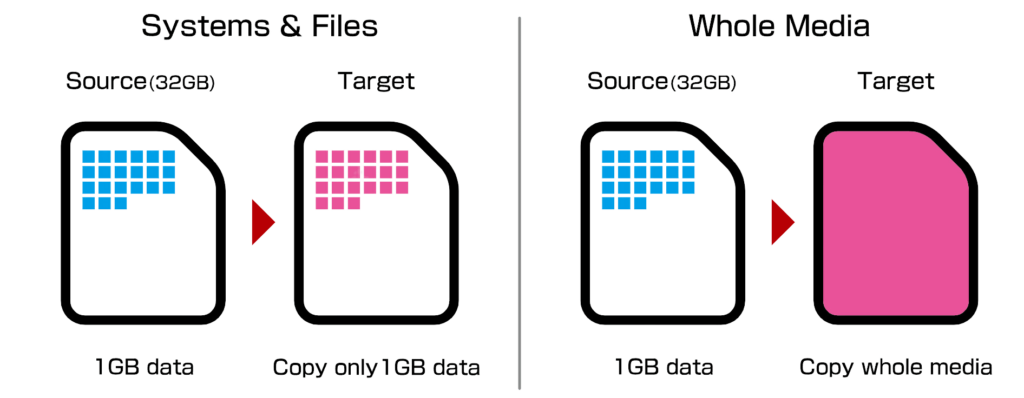

Intelligent Copy Option
Systems and Files (Quick Copy Mode)
- The duplicator automatically copies only the data area, rather than the empty spaces within the capacity, which reduces the duration of the copy process.
- This copy mode supports the file formats such as Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). If the file system format to be copied is not among the supported formats above, then system will automatically switch to “whole media copy” mode.
Whole Media
- The duplicator copies from the initial sector to the end, bit-by-bit.
- There are no format limitation in this mode.
Quality Testing / Checking Functions
Capacity Check
Verifies initial sector and the final sector the connected flash device within 2 seconds.
Read/Write Speed Check
This function performs a read/write benchmark of the connected devices within 8 seconds.
H5 Quality Test
Resembling the H5 test, it overwrites machine generated-values only to the empty sectors without disturbing pre-existing data, partitions, and formats.

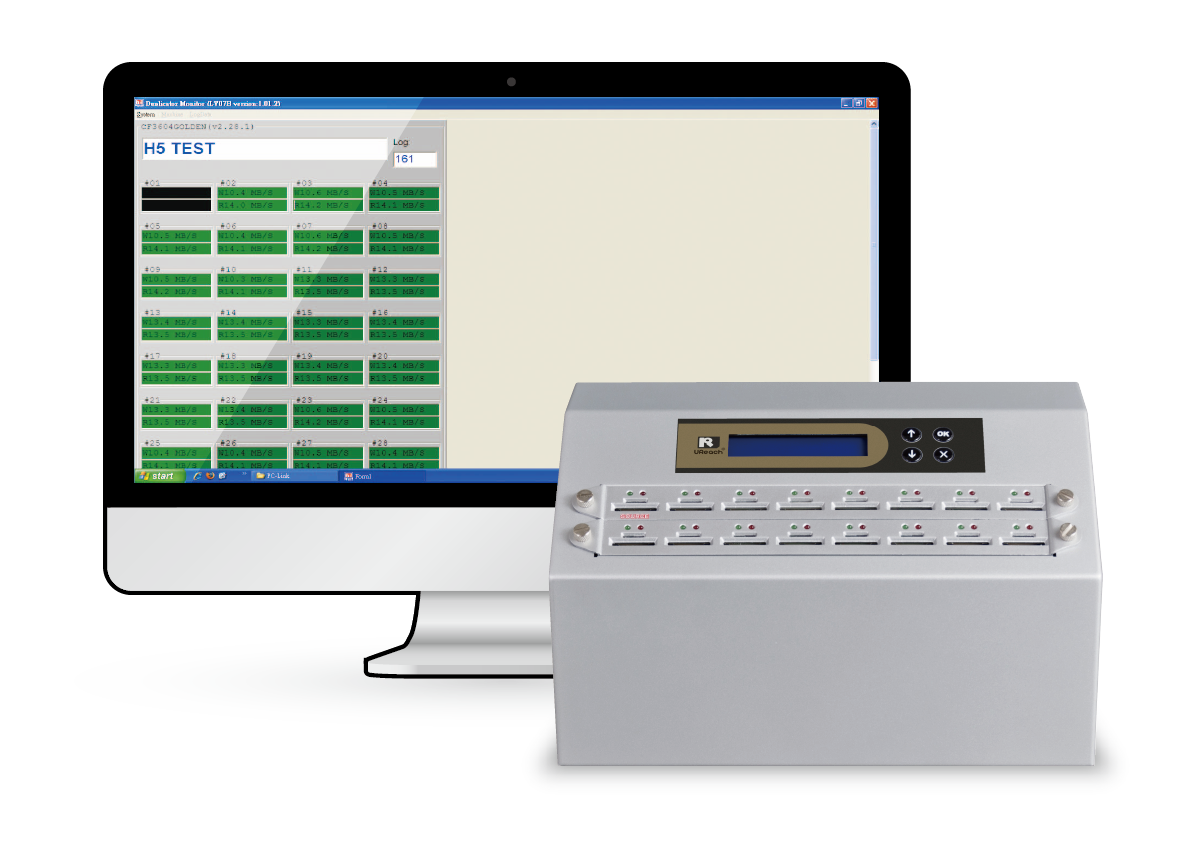

Real-Time Monitoring
Monitor real-time status via PC through USB cable link.
Flash Speed and Capacity Filtration
Event Log Report
- Records duplicator operation (time and result).
- Records system and target information details (VID/PID, MID/OID, S/N number).
- An essential tool for production quality remote control and yield analysis.
User-Friendly Design

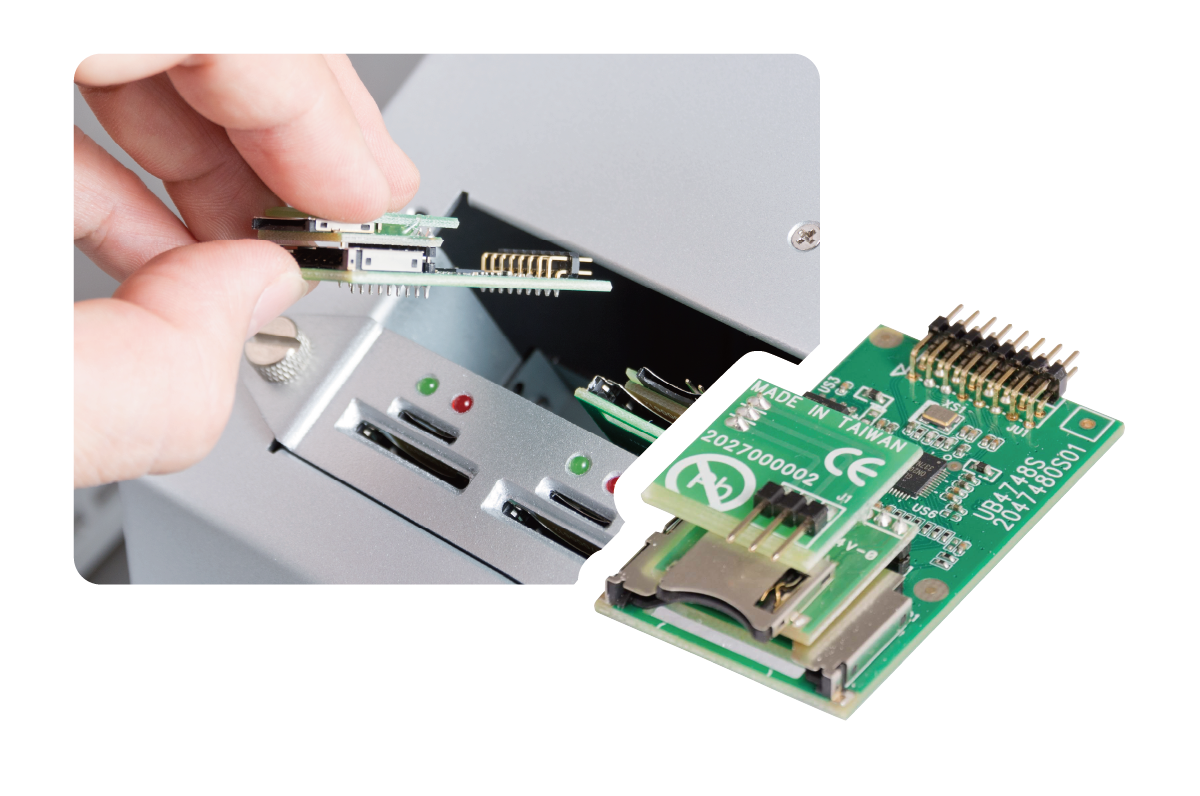

Modular Sockets
Interfaced sockets are subjected to wear-and-tear caused by frequent connections and disconnects. Modular sockets enable quick replacements while reducing downtime, effectively making this solution a long-term and cost-effective ownership.
Ergonomic & Compact Proportions
The refined ergonomic proportion reduces the flash duplicator by 50% to 70% compared to traditional chassis design.
Comparison Chart
