Understanding DoD 5220.22-M: The Legacy Standard for Secure Data Sanitization
In an era where data breaches can cost millions and destroy corporate reputations, the phrase “hitting delete” is no longer enough. For government agencies, defense contractors, and private enterprises handling sensitive intellectual property, the benchmark for data destruction has long been the DoD 5220.22-M standard.
Whether you are decommissioning old servers, recycling office laptops, or upgrading to high-performance SSDs, understanding the mechanics of DoD 5220.22-M is crucial for maintaining a secure and compliant IT infrastructure.
What is DoD 5220.22-M Standard
Originally published by the Department of Defense in the National Industrial Security Program Operating Manual (NISPOM) in 1995, the DoD 5220.22-M standard defines a specific software-based data sanitization method. Its goal is simple but absolute: to prevent the recovery of data from a hard disk drive (HDD) using any known laboratory-grade recovery technology.
While the Department of Defense has shifted its internal focus toward newer guidelines like NIST 800-88, the DoD 5220.22-M remains the most recognized and requested sanitization protocol in the commercial sector.

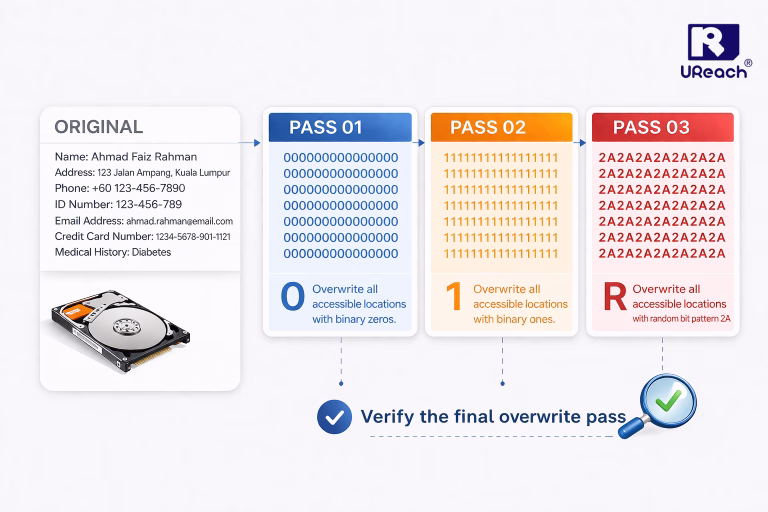

The Three-Pass Process
The classic DoD 5220.22-M method involves a rigorous three-pass overwrite process:
Pass 1: Overwrite all addressable locations with a character (usually zeros).
Pass 2: Overwrite all addressable locations with the complement of the first character (usually ones).
Pass 3: Overwrite all addressable locations with a random character.
Verification: A final step to verify that the last overwrite was successful across the entire drive.
This multi-layered approach was designed to combat “magnetic remanence”— the theory that sensitive data could be recovered from a hard drive’s magnetic surface even after being deleted.
Why DoD 5220.22-M Still Matters Today
You might wonder why a standard developed in the 1990s is still relevant in 2026. The answer lies in its rigorous methodology and the trust it has built over decades.
1. Compliance and Auditing
Many legacy contracts and industry-specific regulations still explicitly require DoD 5220.22-M compliance. For companies undergoing security audits, being able to produce an erasure certificate that states “Wiped via DoD 5220.22-M” provides an immediate layer of institutional credibility.
2. Eliminating Data Residue
Unlike a standard “Quick Format” or “Factory Reset,” which only deletes the pointers to files, the DoD method ensures there is no data residue left behind. Every sector of the drive is physically changed at the binary level.
3. Protecting Against Advanced Recovery
By using three distinct passes, the standard protects against sophisticated forensic-grade tools. While modern recovery technology has advanced, the triple-overwrite remains a formidable barrier against even the most determined data thieves.
DoD 5220.22-M Erasure Standard On SSDs Scenario
It is important to note a technical nuance: DoD 5220.22-M was originally engineered for magnetic hard drives. Solid State Drives (SSDs) store data differently using NAND flash cells and complex wear-leveling algorithms.
Because of this, modern security professionals often look for equipment that can perform both the classic DoD 3-pass wipe for legacy HDDs and the NIST 800-88 Purge commands for NVMe and SATA SSDs. High-end data erasers now integrate these standards into a single, automated workflow to ensure that regardless of the storage media, the result is the same: 100% unrecoverable data.
The Risky Move: Why Software and Docks Fail DoD 5220.22-M Data Erasure
Many businesses attempt to achieve DoD 5220.22-M compliance using free software and a standard hard drive docking station. This approach is fraught with risks:
The USB Bottleneck: Running a 3-pass wipe through a USB-connected dock is agonizingly slow. A 10TB drive could take days to finish, tying up your PC and leaving the process vulnerable to OS crashes.
Hidden Sectors: Consumer-grade software often fails to reach the Host Protected Area (HPA) or Device Configuration Overlay (DCO). These hidden sectors can store megabytes of sensitive data that a standard software wipe will miss.
Lack of Certification: A DIY software wipe rarely provides the “Tamper-Proof Certificate” required for a real security audit.
Professional DoD 5220-22-M Erasure Standard Solutions: UReach Hardware-Based Erasure
For organizations that need to scale their data sanitization, a hardware-based solution is the only viable path. UReach erasers are purpose-built to execute the DoD 5220.22-M standard with industrial efficiency. The U-Reach professional Data Eraser consist of characteristics as following:
Standalone FPGA Performance
Our machines utilize FPGA standalone operation, meaning they do not require a computer to function. This removes the risk of virus interference or OS-related failures. You simply plug the drives in, select the DoD 3-pass mode, and let the hardware handle the rest.
30GB/min Fast Copy and Erase
Time is money. While a docking station struggles with shared bandwidth, our erasers provide dedicated channels for every port. You can wipe multiple drives simultaneously at speeds up to 30GB/min, significantly reducing the time required for a full 3-pass cycle.
Multiple Erase Modes
The various erasing options make our equipment ideal for governments, datacenters, financial sectors, and medical centers for high-stakes data destruction. We provide 20+ erasure options, allowing you to switch between legacy requirements and the latest security protocols instantly:
NIST SP 800-88 Clear(00) & Purge (Secure Erase)
US DoD 5220.22-M & US DoD 5220.22-M ECE
NSA Erase & Military AR380-19 Erase
HMG IS5 Erase & NCSC-TG-025
And many more…
Asynchronous Erase
Unlike a standard hard drive docking station that forces all drives to wait for the slowest unit, our machines feature Asynchronous Erase with physical Fast Key button. This is a game-changer for batches with different storage capacities and speed properties. As soon as one drive finishes its data wiping cycle, you can remove it and plug in a new one for maximum efficiency.
Comprehensive Coverage
A UReach eraser doesn’t just wipe the visible partitions. It communicates directly with the drive’s firmware to ensure that bad sectors are identified and that hidden areas are cleared. The detailed S.M.A.R.T info of each hard disk also is reported after the erase procedure. This deep-level access is what separates a professional tool from a consumer gadget.
Audit-Ready PDF Certificates
At the conclusion of every DoD 5220.22-M process, our machines generate a tamper-proof erasure certificate in PDF format. This document includes the drive’s serial number and a “Success” verification, providing the best proof for your compliance records and ISO27001 international standard auditting purpose.
Check out best-selling U-Reach SAS/SATA disks Data Eraser: SAS/SATA SSD/HDD Series Eraser
Check out U-Reach Full Series Eraser: Full Series Data Eraser
Conclusion
Adhering to the DoD 5220.22-M standard is about more than just checking a box—it’s about ensuring that your company’s “deleted” data doesn’t end up on the dark web or in the hands of a competitor.
While a hard drive docking station might seem like a cost-effective shortcut, the risks of data leakage and incomplete erasure are too high for professional environments. By investing in a standalone, hardware-based eraser, you gain the speed, reliability, and certification needed to protect your enterprise in 2026 and beyond.
