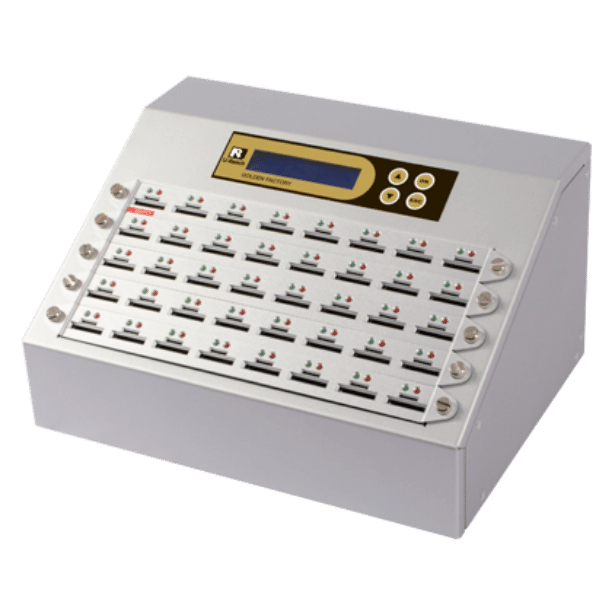

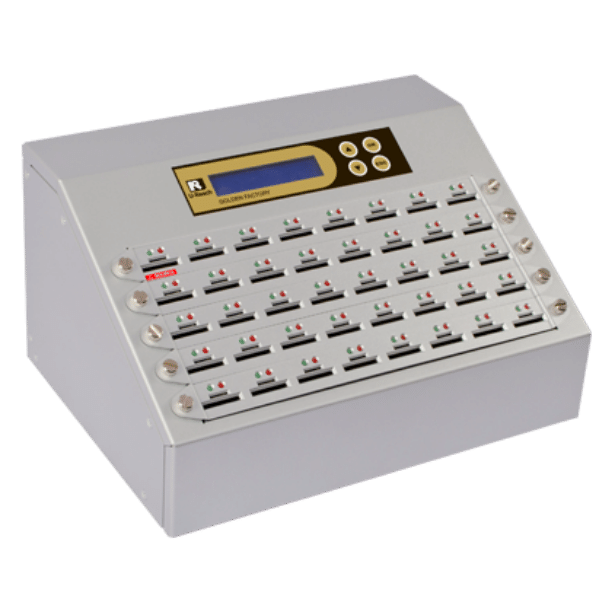

Intelligent 9 Golden Series
1 to 39 SD / microSD Duplicator and Sanitizer (SD940G)
Feature
Standalone, no PC required to operate the SD/MicroSD duplicator.
Peak transfer speeds up to 2GB/min. per port without speed degradation over thousand of ports.
Supports all types of data format copying while doing bit for bit duplication.
Supports “quick copy” for Linux (ext2/ext3/ext4) and NTFS, FAT16/32.
The SD & MicroSD card can have a capacity up to largest size available on the market.
Supports log report for better production management.
Supports durability test.
Supports hardware-level write protection for both SD and MicroSD Cards (device must support write protection).
The most cutting edge in duplication technology, our Intelligent 9 series combo SD/microSD duplicator is professional, standalone and efficient. It can duplicate a full range of SD / microSD cards starting from 9 and up to 119 targets. Speed and flexibility are key factors in satisfying customer needs. Its effortless use means a PC or other software are not required; the combo SD/microSD duplicator provides a reliable, worry-free copy environment for users, without the risk of virus corruption. This Intelligent 9 series combo SD/microSD duplicator is integrated with a high-speed compare function to ensure data copies with 100% accuracy. It also boasts quick format capabilities. These features greatly help increase efficiency and production productivity.
The Intelligent 9 Golden series has added some more important functions – Event Log report, Durability test and Double source comparison.
The Intelligent 9 series combo SD/microSD duplicator is an economical solution for data copy and distribution via SD/microSD memory cards. It contains smart, reliable and beneficial functions that provide an outstanding performance and quality that will save you time and money.
Impeccable High Speed
U-Reach SD / microSD duplicator can copy up to 2GB/min on all devices, simultaneously and without any speed degradation as number of targets increase.
Intelligent Copy Option
Systems and Files (Quick Copy Mode)
- The duplicator automatically copies only the data area, rather than the empty spaces within the capacity, which reduces the duration of the copy process.
- This copy mode supports the file formats such as Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). If the file system format to be copied is not among the supported formats above, then system will automatically switch to “whole media copy” mode.
Whole Media
- The duplicator copies from the initial sector to the end, bit-by-bit.
- There are no format limitation in this mode.
Quality Testing / Checking Functions
H3 Read Only Test
Determines if the flash is readable. This test will not modify pre-existing data.
Capacity Check
Verifies initial sector and the final sector the connected flash device within 2 seconds.
H5 Write/Read Test
Overwrites machine-generated values to all sectors in the NAND flash, and verifies them to determine quality. Once the test passes, then devices are formatted into FAT.
Read/Write Speed Check
This function performs a read/write benchmark of the connected devices within 8 seconds.
H6 Quality Test
Resembling the H5 test, it overwrites machine generated-values only to the empty sectors without disturbing pre-existing data, partitions, and formats.
Burn-in Test
Performs user-defined burn-in tests to flash devices from 30 minutes through 30 days to determine quality and longevity.
Double Source Comparison
Double source comparison can eliminate the chance of a duplication error caused by a worn source. Use the first port as a copying source and use the second port as a compare source. It can guarantee the highest reliability and 100% correctness of the duplication result.
Real-Time Monitoring
Monitor real-time status via PC through USB cable link.
Flash Speed and Capacity Filtration
Easy Maintenance
With a specially redesigned and improved structure, users can easily change the sockets in 3 simple steps, which takes roughly 1 minute.
Event Log Report
- Records duplicator operation (time and result).
- Records system and target information details (VID/PID, MID/OID, S/N number).
- An essential tool for production quality remote control and yield analysis.
User-Friendly Design
Modular Sockets
Interfaced sockets are subjected to wear-and-tear caused by frequent connections and disconnects. Modular sockets enable quick replacements while reducing downtime, effectively making this solution a long-term and cost-effective ownership.
Ergonomic & Compact Proportions
The refined ergonomic proportion reduces the flash duplicator by 50% to 70% compared to traditional chassis design.
Write Protect Solutions
Comparison Chart
